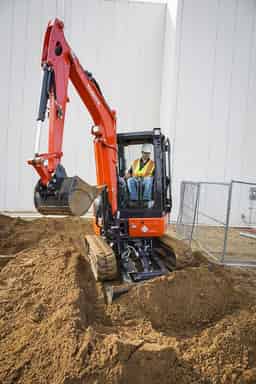

KX033-4 Angle Blade

KX033-4 Angle Blade

COMPACT EXCAVATORS

Call for Pricing

With an available Extended Dipper and optional hydraulic angle blade, the Kubota KX033-4 is unlike any compact excavator you’ve ever seen before. Dig comfortably, with a spacious cab, and make sure that you can get the job done the right way, every time. Once you sit down behind the controls of the KX033-4, you’ll never want to step away. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.



Shop

Find Parts

Build

My Equipment

Download

Specifications

Compare

Specifications

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • LOW-RATE RENTAL BUSINESSES*

    *Not Available for National Accounts or Government Customers

    LOW-RATE RENTAL BUSINESSES*
  • Construction

    $0 Down, 0% A.P.R. for up to 48 Months or Save up to $8,500 on Construction Equipment!

    Construction
Serviceability

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components
Auxiliary

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers
Clean Running Kubota Tier 4 Engine

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

Two Speed Travel

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

Changeable Control Pattern

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

Comfort & Convenience

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
Extendable Dipper

Extendable Dipper

Increase the total working range of the popular KX033-4. The extendable dipper extension increases the reach by 16” and dig depth by 20” compared to the standard KX033-4.

*Available on KX033-4

Angle Blade Optional Hydraulic Angle Blade*

Angle Blade Optional Hydraulic Angle Blade*

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade (optional) can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

*Available on KX033-4, KX040-4, KX057-5, KX080-4S, KX080-5

KX033-4 Angle Blade

KX033-4 Angle Blade

HP

Call for Pricing

Specifications

Arm Breakout Force, Lbs (kgf)

3867 (1756)

Auxiliary Hydraulics Flow Rate, G P M ( L P M)

15.8 (60)

Blade Height, In (mm)

13.5 in (345), Angle Blade: 15.2in (385)

Blade Width, Ft (mm)

5 ft 1 in (1550)

Bucket Breakout Force, Lbs (kgf)

8138 (3694)

Crawler Length, Ft (mm)

6 ft 10.6 in (2100)

Displacement (cu. In.)

100.5

Engine Model

Kubota D1703M-DI-E4

Fuel Reservoir, Gal (l)

12.4 (46.9)

Ground Contact Pressure Psi, Kgf (cm2)

Canopy rubber/steel: 4.365 (0.307) / 4.482 (0.315), Cab rubber/steel: 4.559 (0.321) / 4.676 (0.329), Angle Blade canopy rubber/steel: 4.583 (0.322) / 4.700 (0.331) Angle Blade cab rubber/steel: 4.776 (0.336) / 4.894 (0.344)

Horsepower (gross)

24.8

Hydraulic Oil Reservoir / System, Gal (l)

11.8 (44.6) / 16.1 (61)

Min. Ground Clearance, In (mm)

11.4 (290)

Operating Weight, Lbs (kg)

Canopy rubber/steel: 7420 (3365) / 7616 (3454) Cab rubber/steel: 7742 (3511) / 7938 (3600), Angle Blade canopy rubber/steel: 7781 (3529) / 7978 (3618), Angle Blade cab rubber/steel: 8104 (3675) / 8300 (3764)

Overall Height, Ft (mm)

8 ft 1 in (2480)

Overall Length, Ft (mm)

15 ft 6 in (4730)

Overall Width, Ft (mm)

5 ft 1 in (1550)

Pump Capacity, G P M ( L P M)

10.5 (39.6) x 2 / 5.5 (20.9) x 1

Traveling Speed: High, Mph (kph)

1.9 (3.0)

Traveling Speed: Low, Mph (kph)

2.9 (4.6)
